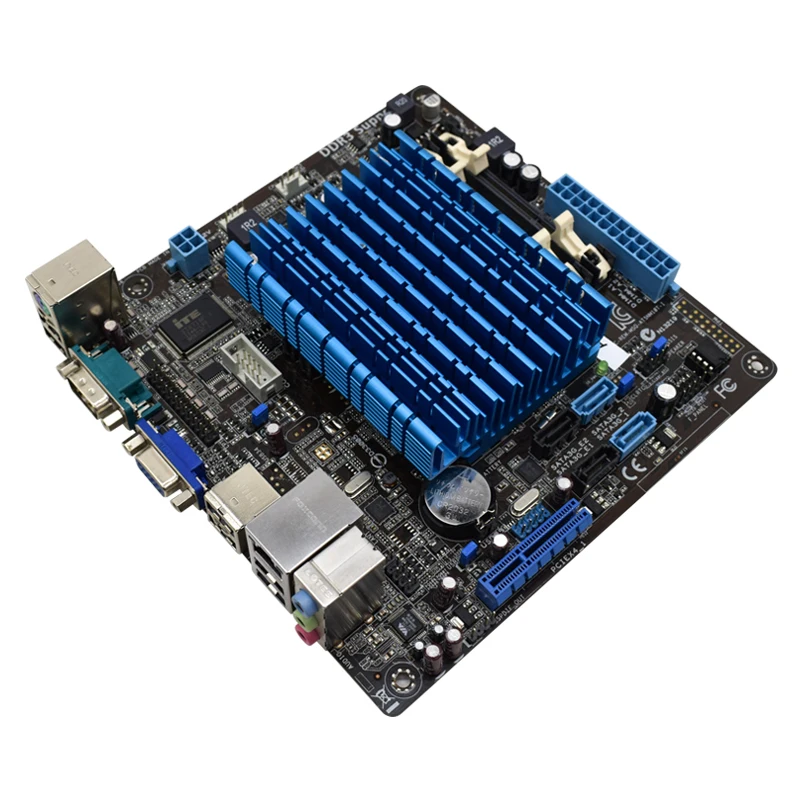

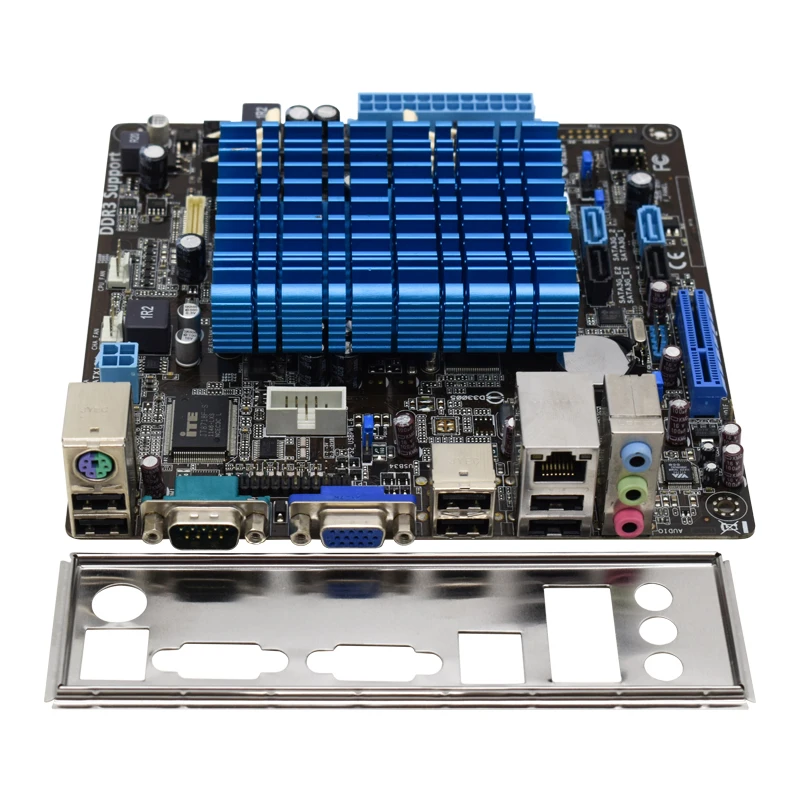

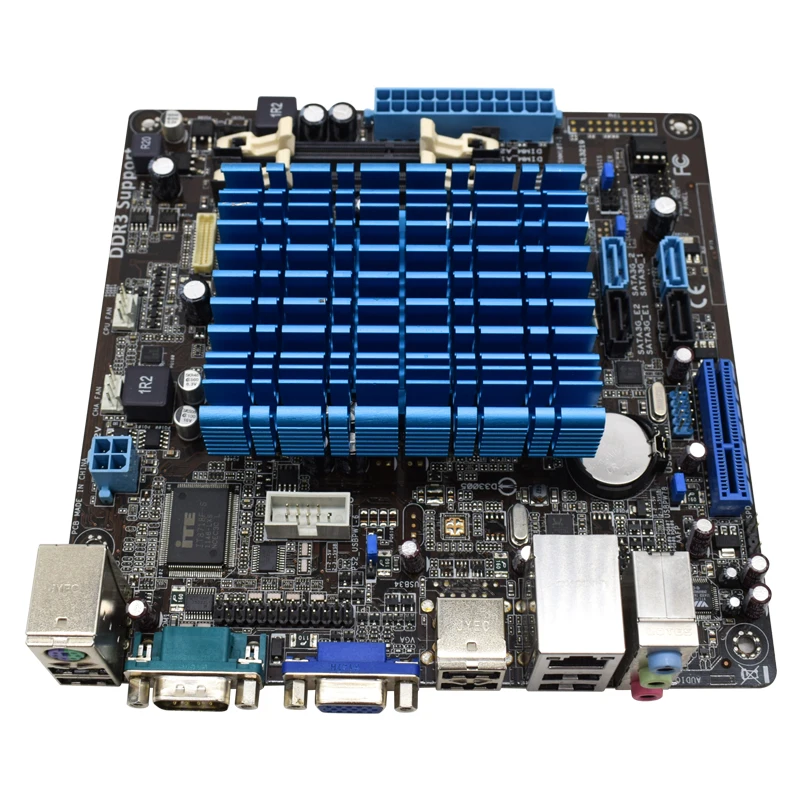

ASUS AT4NM10T-I integrated Atom D425 CPU Mini ITX Motherboard DDR3 RAM Memory 17*17 cm GeForce Mini PC Motherboard Set

AT4NM10T-I Parameters

Processor Intel Atom D425
Chipset Type Intel NM10 Express
Expansion Slots 2 x SO-DIMM 204-pin
1 x PCIe x1
Storage Interfaces SATA-300 -connectors: 4 x 7pin Serial ATA – 4 devices
Internal Interfaces 2 x USB 2.0
1 x serial
1 x parallel
1 x SPDIF
1 x audio
Power Connectors 4-pin ATX12V connector, 24-pin main power connector

MEMORY
Memory Allocation Technology Dynamic Video Memory Technology 4.0
Max Allocated RAM Size 256 MB
MISCELLANEOUS
Microsoft Certifications Compatible with Windows 7
Product Type motherboard
Compatible with Windows 7 “Compatible with Windows 7” software and devices carry Microsoft?s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.

AUDIO OUTPUT
Sound Output Mode 5.1 channel surround
Compliant Standards High Definition Audio
Type sound card
Audio Codec VIA VT1705
Audio High Definition Audio (6-channel)
RAM
Max Supported Size 4 GB

MAINBOARD FEATURES
BIOS Type AMI
BIOS Features ASUS EZ Flash 2, ASUS MyLogo2, DMI 2.0 support, SMBIOS 2.5 support, WfM 2.0 support
Hardware Features CrashFree BIOS 3, chassis intrusion detection
INTERFACES
Storage Serial ATA-300
Storage Ports 4 x SATA-300
USB / FireWire Ports Configuration (Active) 6 x USB 2.0
CABLE DETAILS
Type Serial ATA cable
Included Qty 2
EXPANSION SLOTS
Total Qty 1, 2
Type PCIe x1, SO-DIMM 204-pin
DIMENSIONS & WEIGHT
Width 6.7 in
Depth 6.7 in
VIDEO MEMORY
Memory Allocation Technology Dynamic Video Memory Technology 4.0
Max Allocated RAM Size 256 MB
