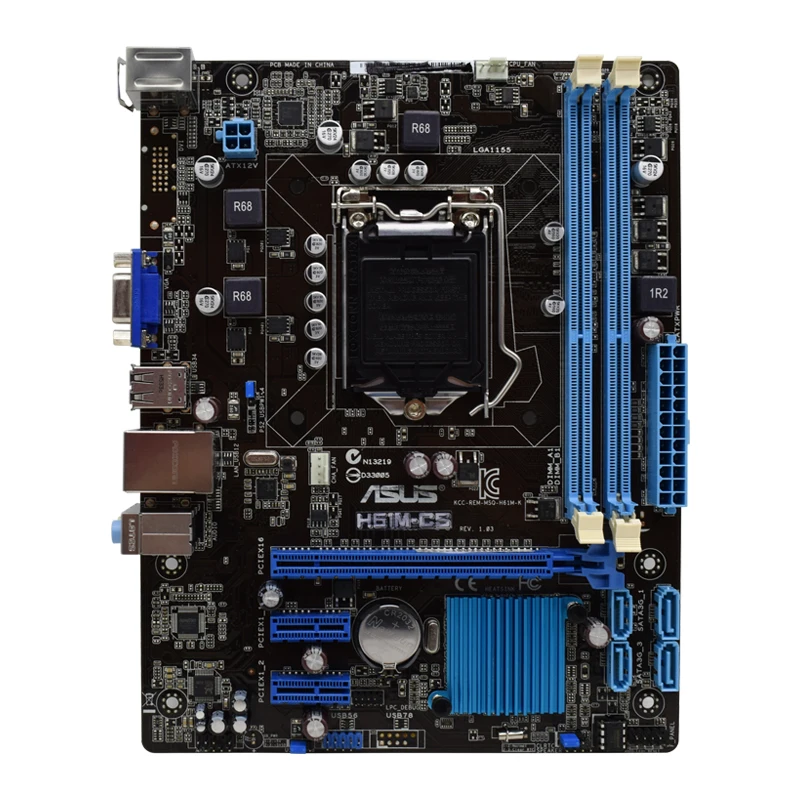

ASUS H61M-CS Motherboard 1155 DDR3 Motherboard LGA 1155 Intel H61 Core i7 i5 i3 Processor 16GB PCI-E x16 UEFI BIOS USB2.0 SATA 3

H61M-CS Parameters

Chipset
Intel H61(B3)
Integrated Graphics Processor
VGA output support : RGB port
Supports RGB with max. resolution 2048 x 1536 @ 75 Hz
Maximum shared memory of 1024 MB

CPU
Intel socket 1155 for 3rd/2nd generation core
i7/core i5/core i3/pentium/celeron processors
Supports Intel 22 nm CPU
Supports Intel 32 nm CPU
Supports Intel turbo boost technology 2.0
Supports CPU up to 77 W

Memory
2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture
1600MHz and higher frequency is supported by Intel 3rd generation processors.
Due to OS limitation, when installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows OS when you want to install 4GB or more memory on the motherboard.

Expansion Slots
1 x PCIe 3.0/2.0 x16 *1
2 x PCIe 2.0 x1
LAN
Realtek 8111F, 1 x Gigabit LAN Controller(s)

Storage
Intel H61(B3) Chipset :
4 x SATA 3Gb/s port(s), bluewith M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode).

USB Ports
Intel H61(B3) Chipset
6 x USB 2.0 port(s) (4 at back panel, black, 2 at mid-board)

Accessories
I/O Shield
2 x SATA 3Gb/s cable(s)
BIOS
64Mb Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM2.0, SMBIOS v2.7, ACPI v2.0a,SLP3.0, EUP-ready.
